Thermal Paste

Athermal interface material (shortened to TIM) is anymaterialthat is inserted between two components in order to enhance the thermal coupling between them. A common use is heat dissipation, in which the TIM is inserted between a heat-producing device (e.g. an integrated circuit) and a heat-dissipating device. As this decade sees the trend of electronic components size reduced with ongoing pace it made Thermal interface materials indispensable part of Electronics Design Part.

TIM solutions these days are indispensable for Any new product development in electronics field. Application of TIM is essential where more then one heat path is involved. Surface of Standard Machine parts are either rough or wavy which practicallyreduce the contact points between two surfaces. These multiple voids between two surfaces create the thermal barrier to overcome this thermalinterface materials comes in picture. The Industryofwhich ThermalManagement caters is quite wide Electronics, LED Lighting, SolarInverters etc.

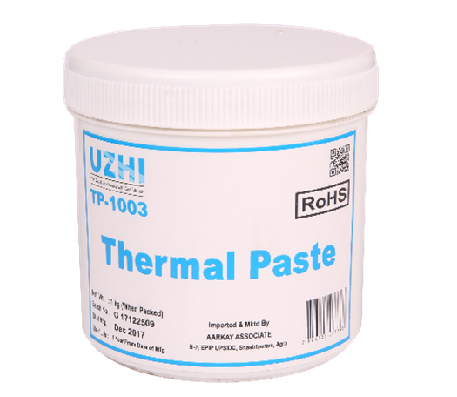

Thermal Grease also known as Thermal Paste, Heat Sink Compound, its consists of silicone oil which work as carrier and various conductive fillers. Silicone Thermalgreases are non-curing product and easy to apply.

UZHI offers best in Class Thermal Conductive Grease, These grease have low oil bleed, high thermal conductivity, good lubricating properties, also has good resistance to high and low temperature performance , these greases can with stand temperature range -40 to 200 degree. UZHI products are non-corrosive, non-toxic, tasteless, and comply latest Reach & ROHS guidelines

Properties Unit TP 100 TP 100 H TP 1020 TP 1003 TP 1037
Appearance Visual White White White/Grey White/Grey White/Grey
Thermal Conductivity w/MK 1 1.5 2 3.2 3.7
Viscosity  cPs @ 5RPM 200000 105000 135000 225000 280000
Oil Server Percentage (200 C,24h) 0.30% <0.10 <0.10 <0.10 <0.10
Volume Resistivity (Ω-cm) 3.5x1014
Volatile Content (120 C 24h     0.0042 0.0053 0.0056
Bond Line Thickness µm 35 35 35 35 35
Thermal Resistance @40psi (120,24h) C-cm2/W     0.32 0.26 .015
